    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine

    Ask Lasest Price
    Brand Name : LIMAC
    Supply Ability : 10 Set/Sets per Month
    Price : $30,000.00 - $200,000.00/sets
    • Product Details
    • Company Profile

    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine

    Products Description
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Mixer
    Mixing soap noodles and other additive
    This biaxial mixer has Z-agitators, the twist angle is changed to 55°to increase the mixing length,obtaining better agitation. The
    two agitators have different speeds: fast agitator 36 r/min, slow agitator 22 r/min. The soap pellets will be turn to powder in 3
    minutes.
    Capacity: 250 kg/batch

    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Three roll mill
    bottom discharged mill with three rolls and two scrapers are design for professional soap producers. The soap particle size can
    reach 0.05 mm after milling. The size of milled soap is uniformly distributed, that means 100% of efficiency. The 3 rolls, made
    from stainless alloy 4Cr, are driven by 3 gear reducers with their own speed. The gear reducers are supplied by SEW, Germany. The
    clearance between rolls can be adjusted independently; the adjusting error is 0.05 mm max. The clearance is fixed by shrinking
    sleeves supplied by KTR, Germany, and set screws.
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Duplex vacuum plodder
    This is a two-stage extruder. Each worm is speed adjustable. The upper stage is for refining of soap, while the lower stage is for
    plodding of the soap. Between the two stages there is a vacuum chamber where air is evacuated from the soap to eliminate air
    bubbles in the soap. The high pressure in the lower barrel make soap compact then the soap is extruded out to form continuous soap
    bar.

    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine

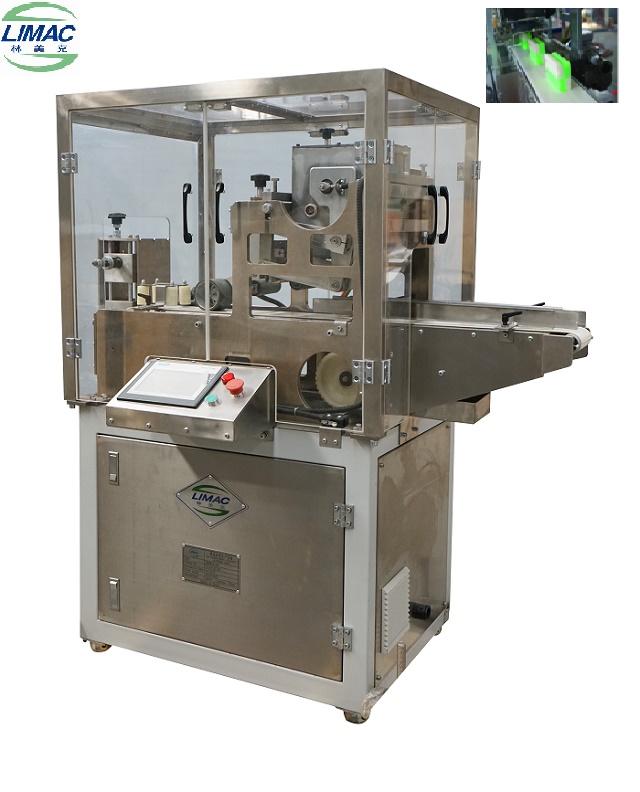

    soap cutter
    1000ES-QKI Electronic single-blade cutter is with vertical engraving rolls, used in toilet or translucent soap finishing line for
    preparing soap billets for soap stamping machine. All electric components are supplied by Siemens. Split boxes supplied by
    professional company are used for whole servo and PLC control system. The machine is noise free.
    Cutting accuracy ± 1 gram in weight and 0.3 mm in length.
    Capacity:
    Soap cutting width: 120 mm max.
    Soap cutting length: 60 to 999 mm
    Cutting speed: 20 to 220 pcs/min
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    soap stamper
    stamper press any soap shape and logo. This machine uses best mechanical parts, such as two-speed gear reducer, speed variator and
    right-angle drive supplied by Rossi, Italy; coupling and shrinking sleeve by German manufacturer, bearings by SKF, Sweden; Guide
    rail by THK, Japan; electric parts by Siemens, Germany. T The control is realized by a PLC.
    It controls the vacuum and compressed air on/off during stamping.
    Capacity:
    6 pieces in one stroke, 5 to 45 strokes per minute.
    Compressed air pressure: 0.6 MPa.
    FEATURES AT A GLANCE
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Right elevation
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Left elevation
    Multifunctional Stainless Steel 304 Fully Automatic Laundry Bar Soap Making Machine
    Front elevation
    SIMILAR PRODUCTS
    FAQ
    1. Are you factory? Yes! We're specializing in designing and manufactureing the whole set of soap machinery from oil and soap noodles. 2.Can you supply technical support. Yes! We can support to install and produce soap for whole line. ,and we also supply raw material and formula.
    3. Can you guarantee your quality? Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
